Case Study / Section 01: Systems, R&D & Automation

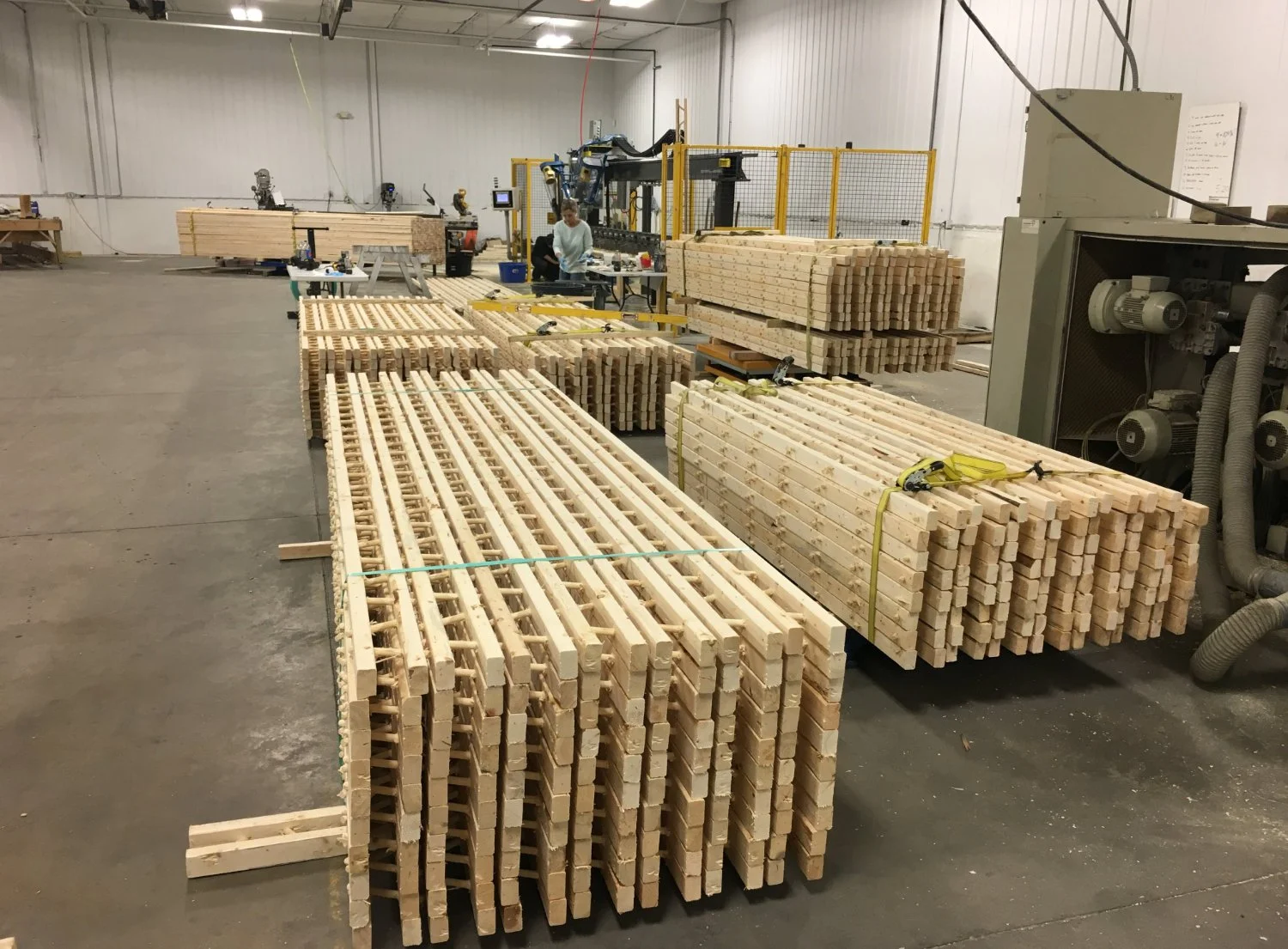

T-Stud Automation & Process Engineering
Designing and deploying custom automated manufacturing equipment, precision tooling gantries, and quality control test rigs to transition a patented thermally broken wall stud from manual assembly to high-speed production.
01 / The Challenge
The T-Stud is a structural, thermally broken wall stud engineered to eliminate thermal bridging in building envelopes. While the core product design was validated, transitioning from manual lab prototypes to scalable, high-speed manufacturing required designing custom machinery from the ground up.
The primary challenge was engineering a continuous production line capable of precise multi-axis timber drilling, dowel insertion, polyisocyanurate foam core curing/pressing, and real-time structural QC validation—all within tight tolerances and aggressive cycle-time targets.

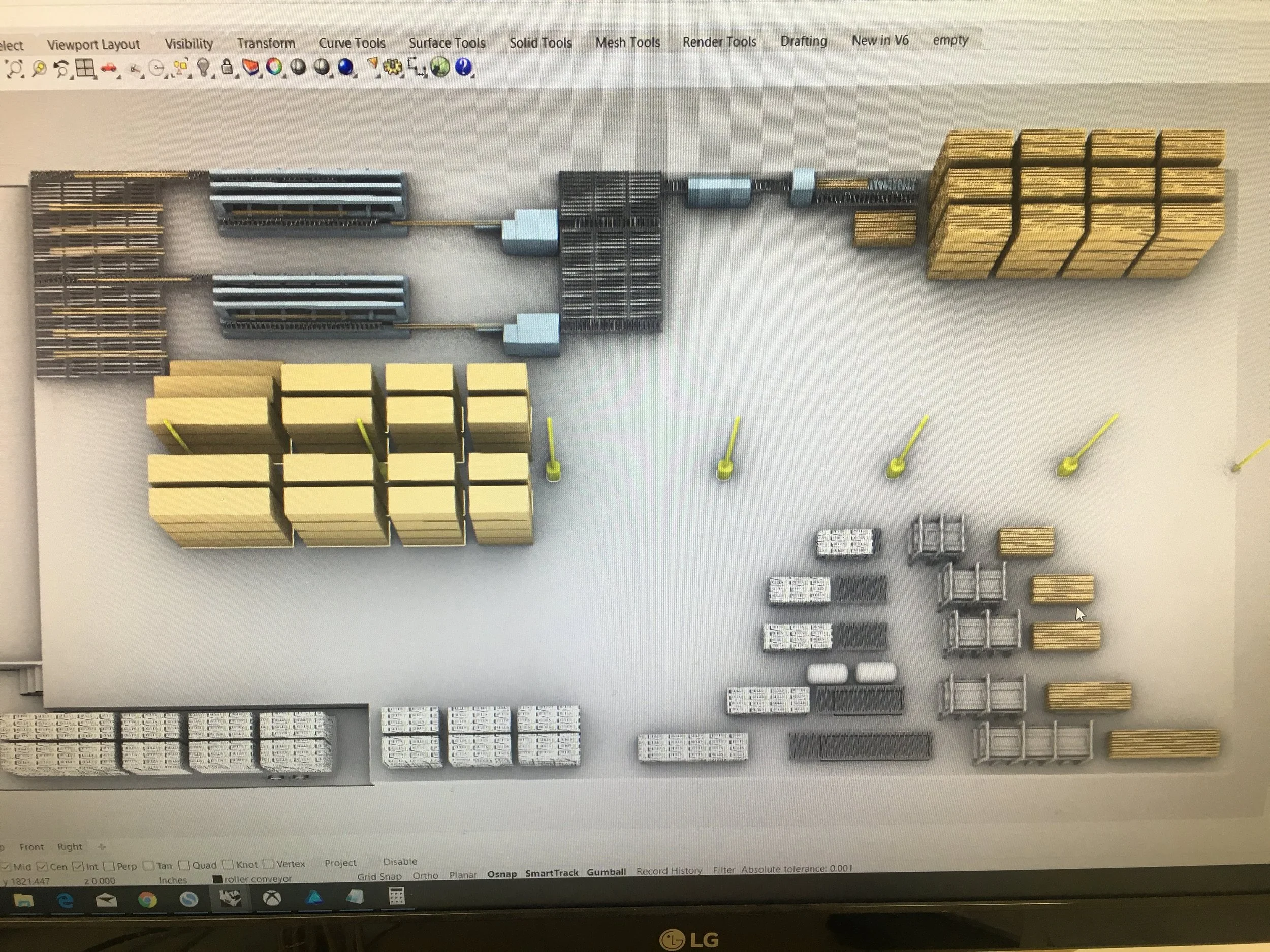

02 / Engineering & Execution

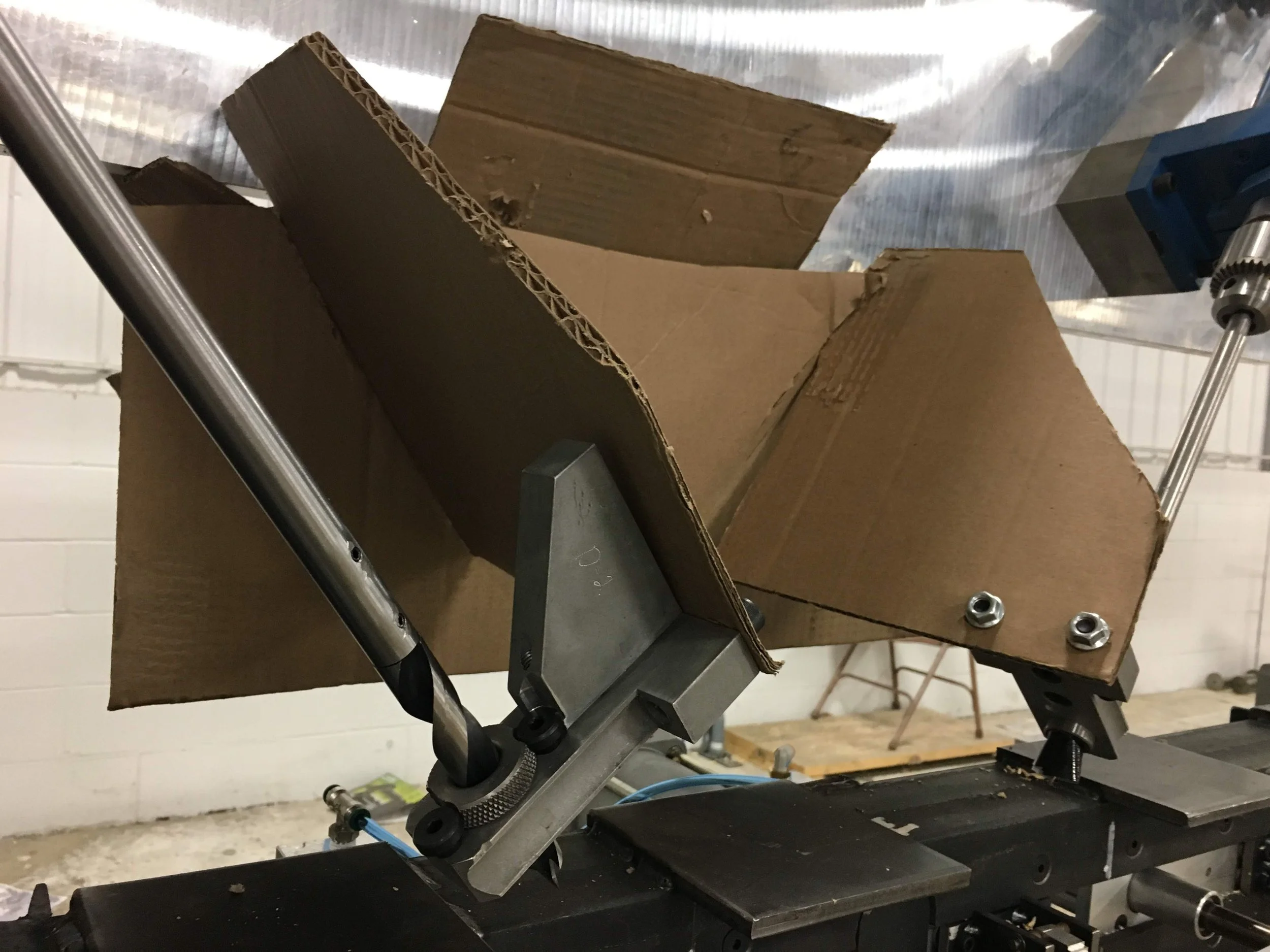

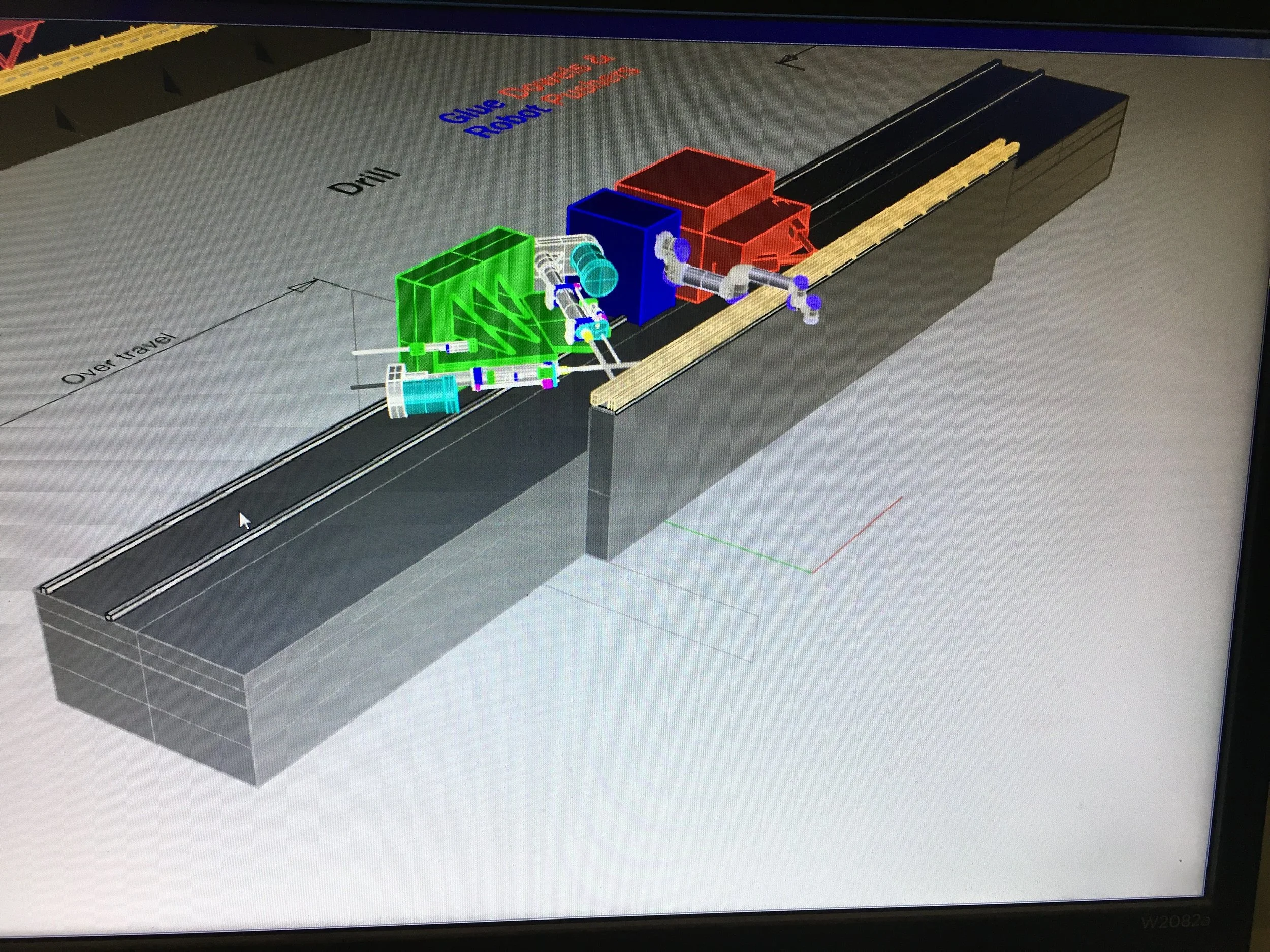

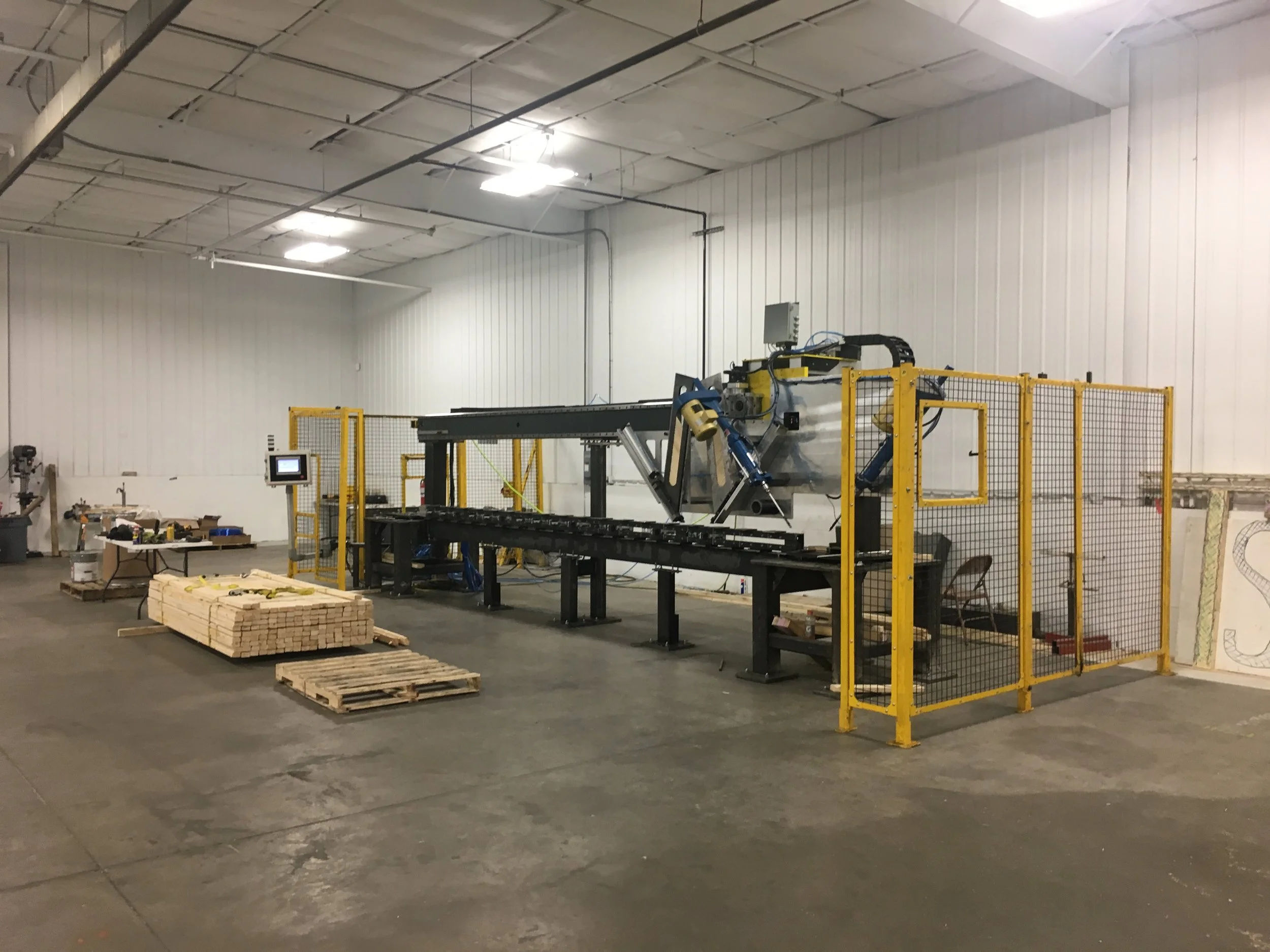

Multi-Axis Drilling & Dowel Gantry

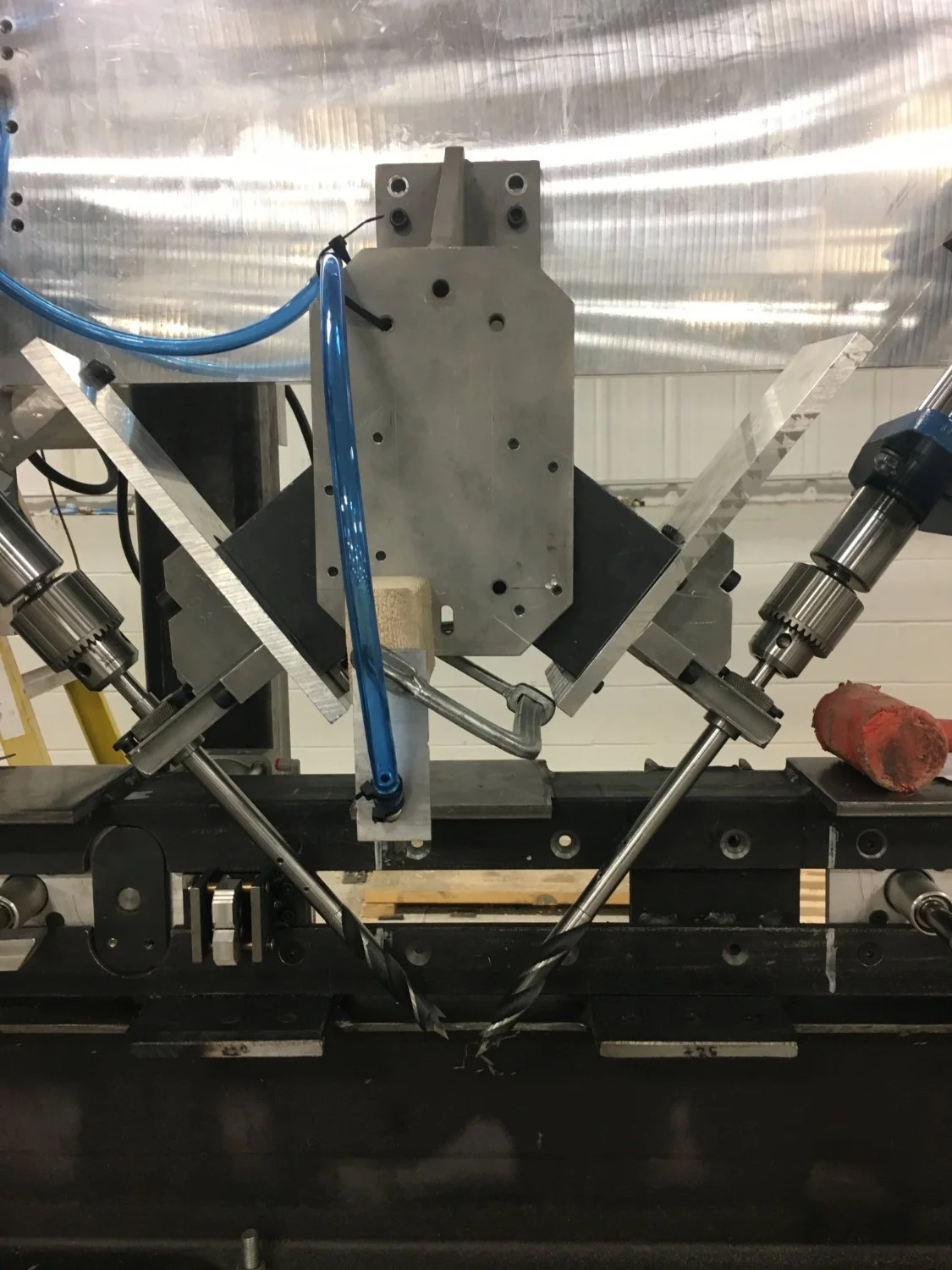

Engineered custom pneumatic and servo-driven gantries to drill complex angled dowel pockets and insert structural connectors automatically at production speeds.

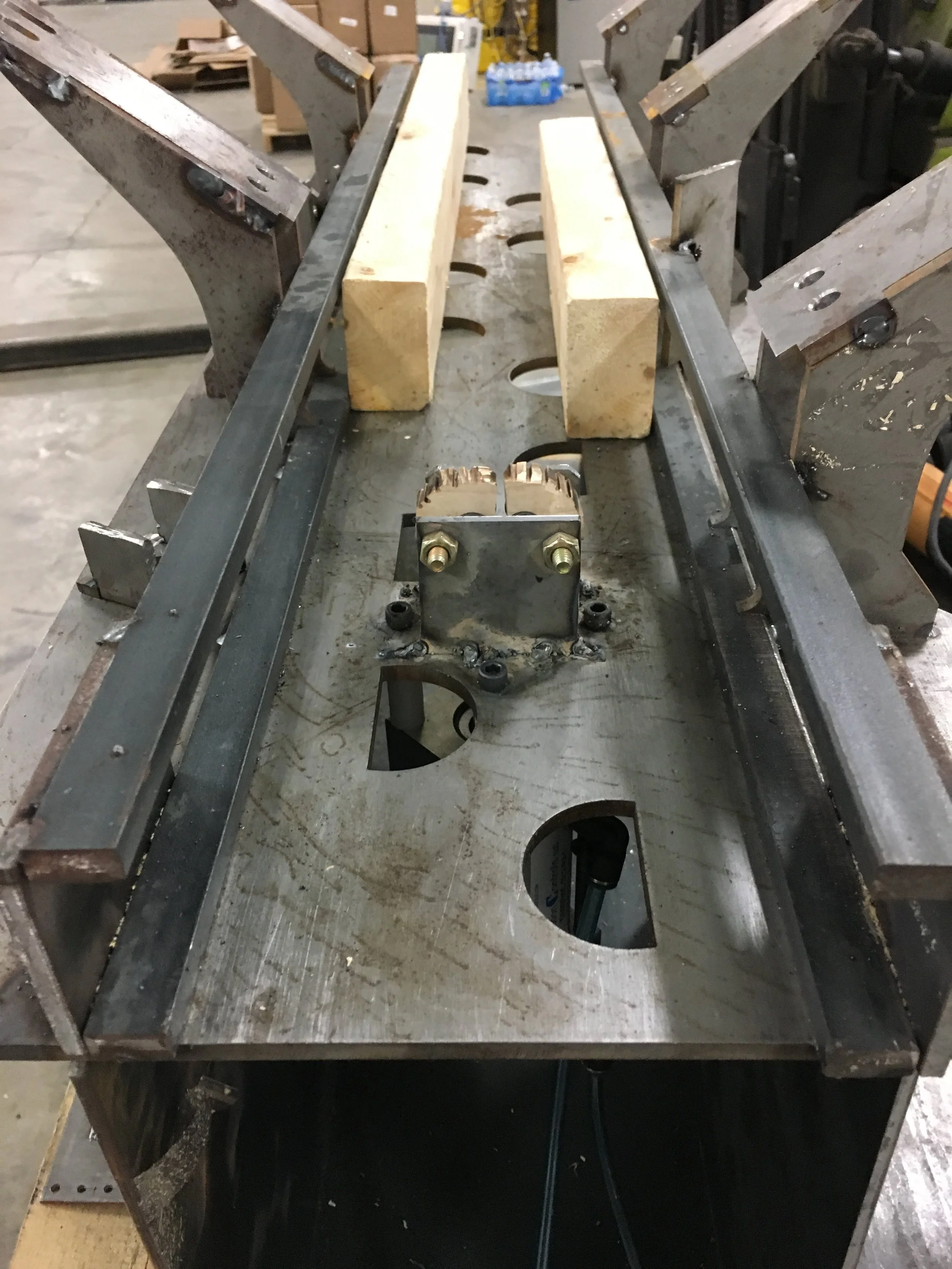

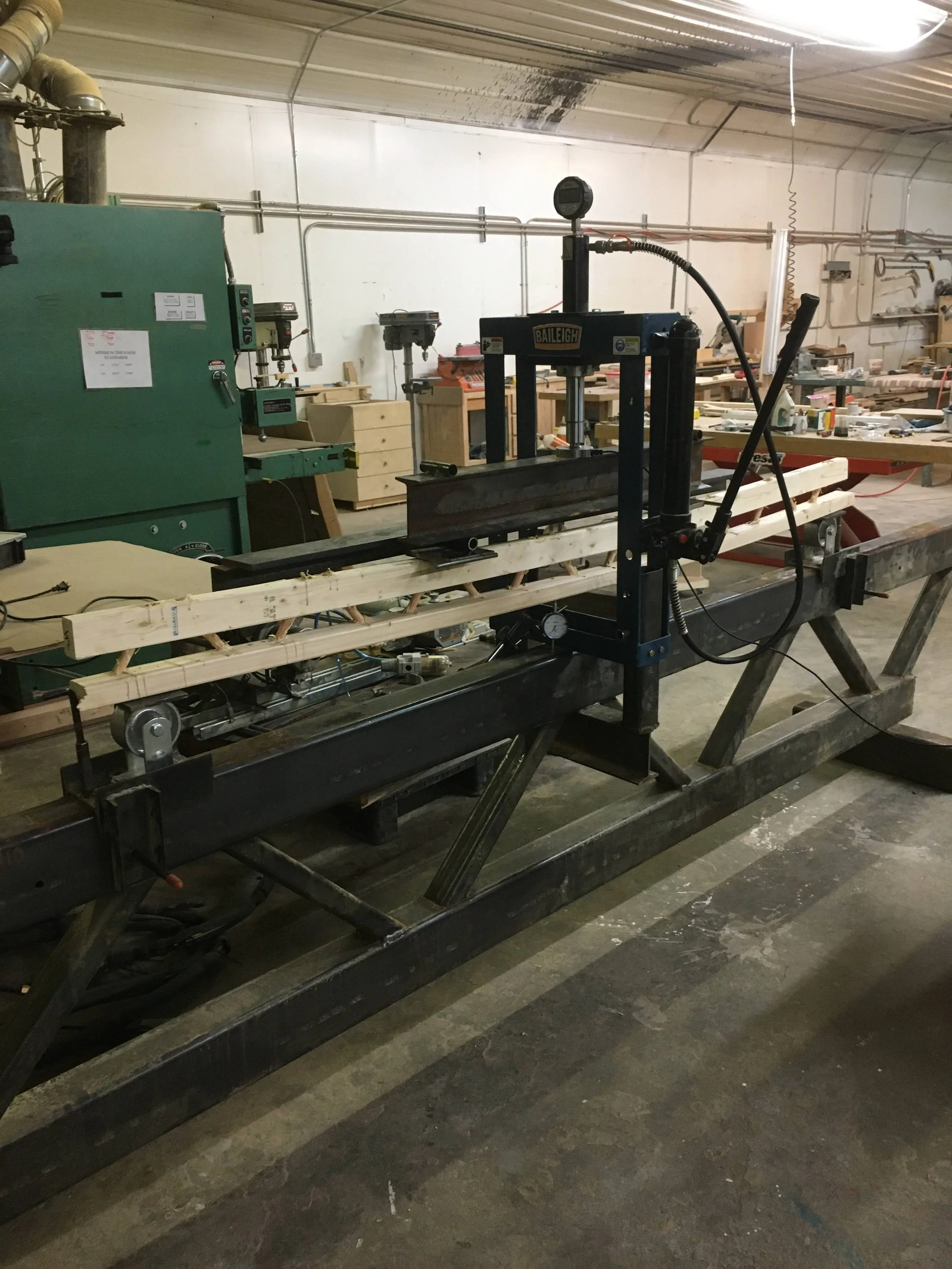

Custom Foam Press System
Designed specialized press fixturing to contain liquid foam during injection, reaction, hold, and cure of polyisocyanurate foam cores under high pressure without warping or displacing the outer framing members, while maintaining consistent fill and density every cycle.

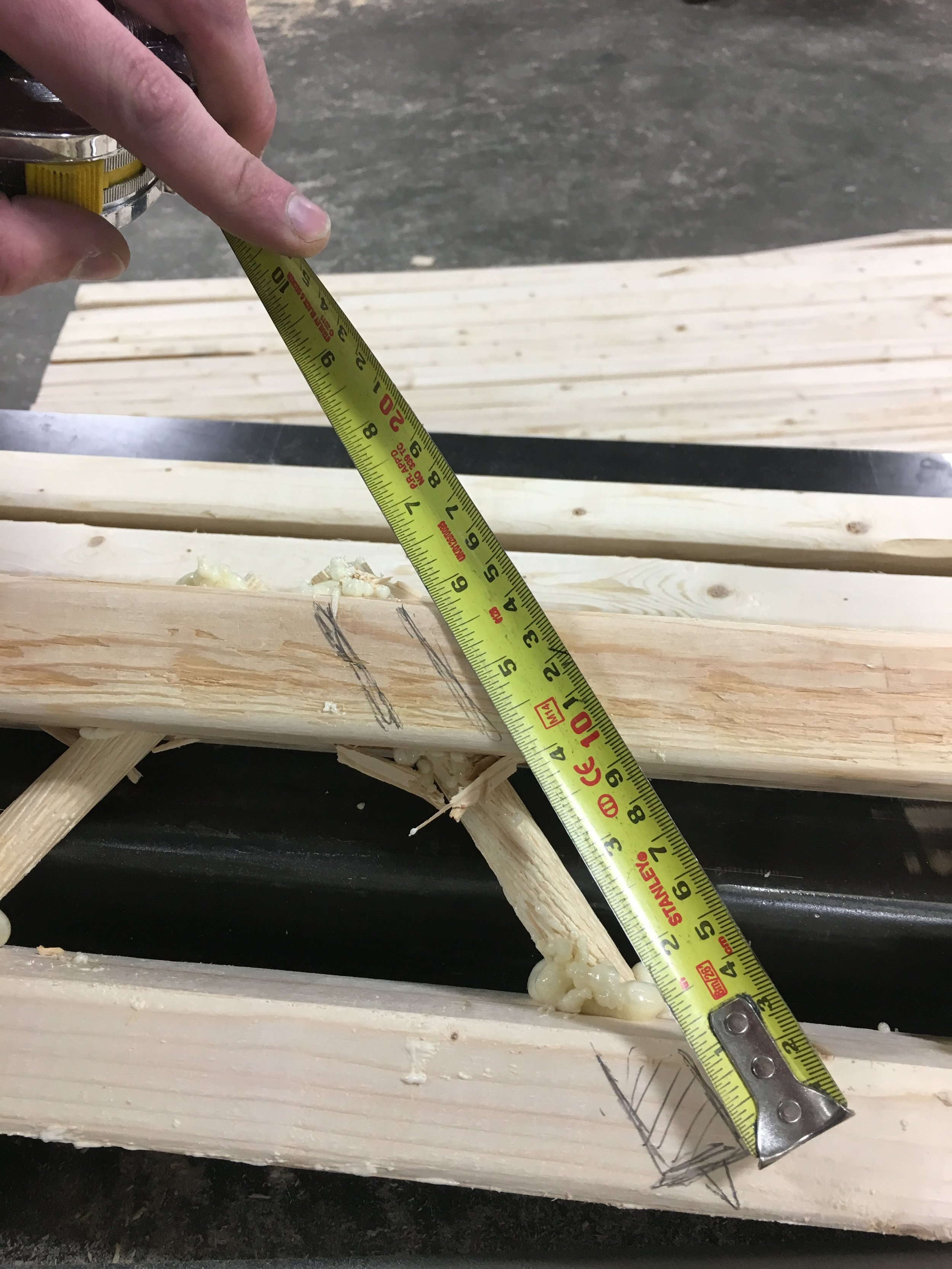

QC & Structural Test Rig

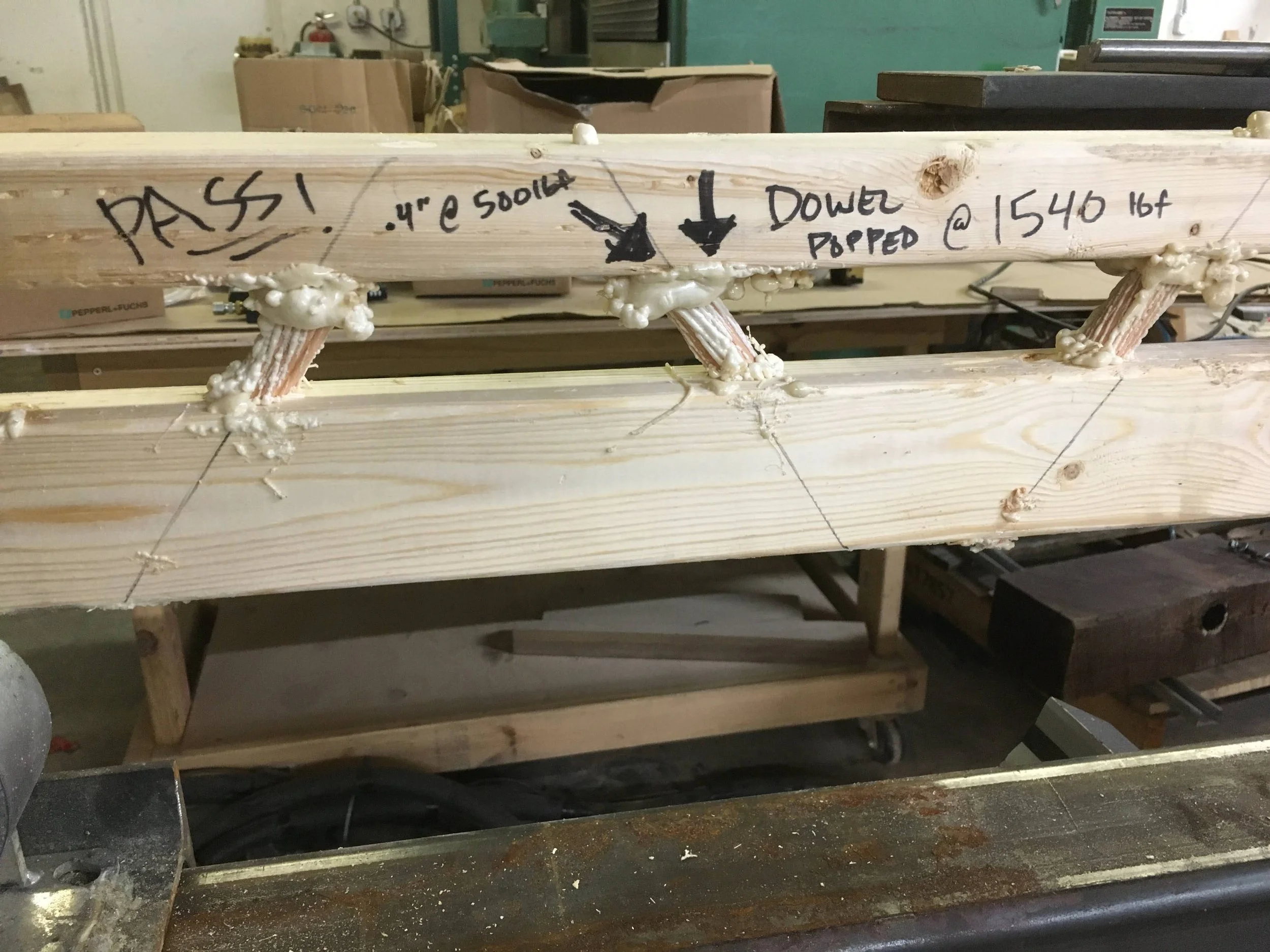

Developed a custom destructive and non-destructive load-testing rig to continually evaluate shear strength and foam-to-wood bond integrity right on the shop floor.

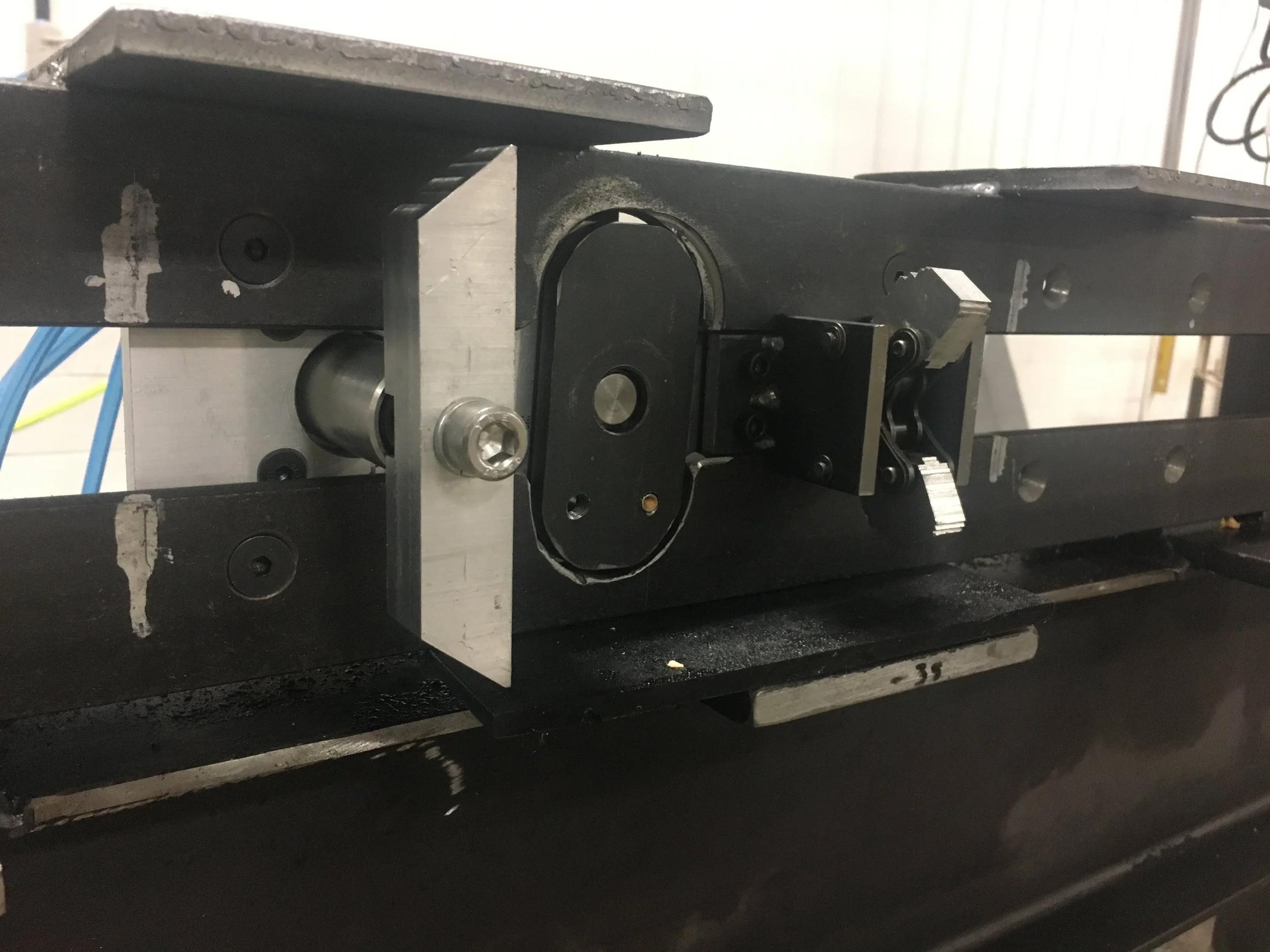

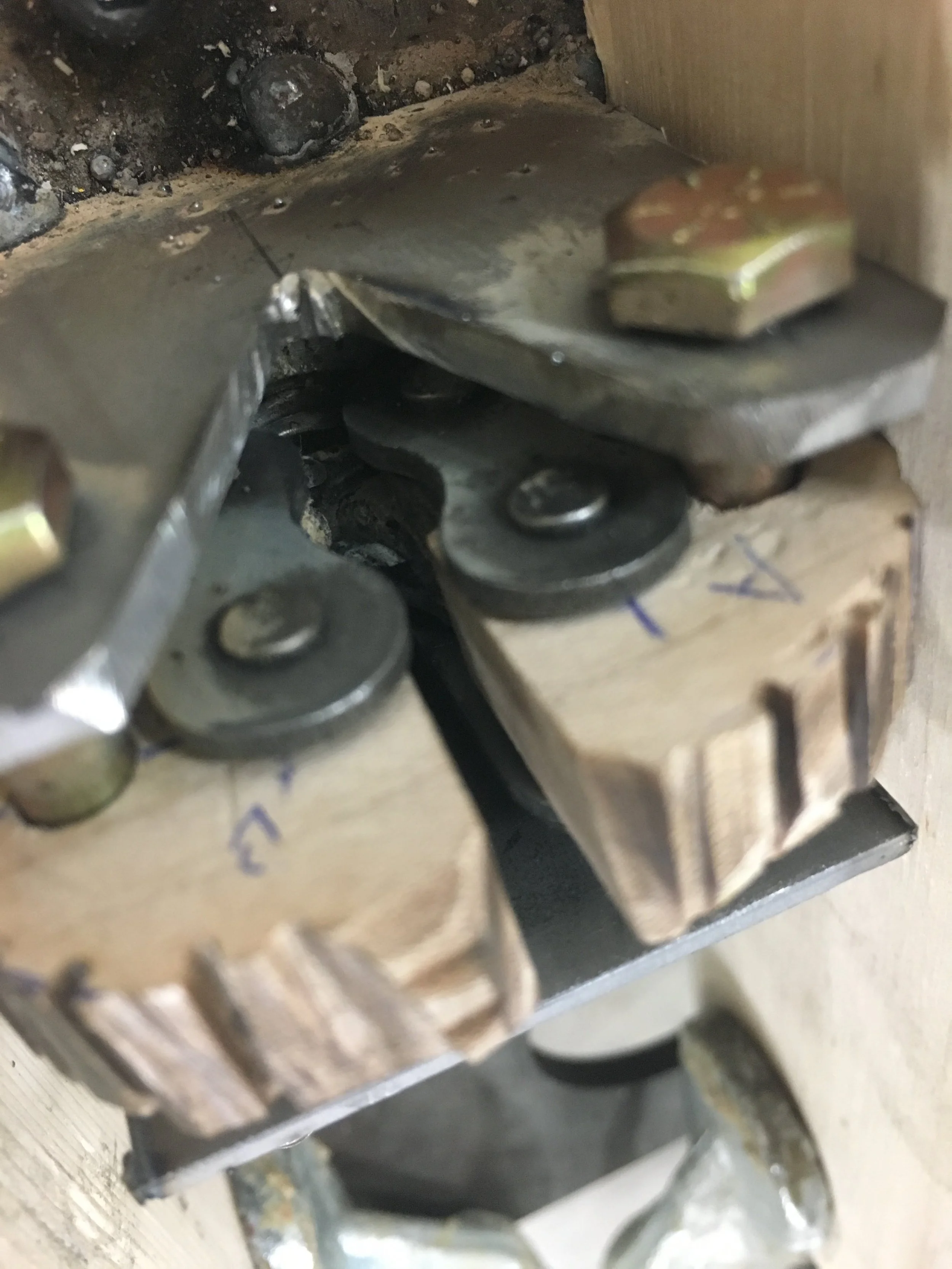

Testing pneumatic clamp modules

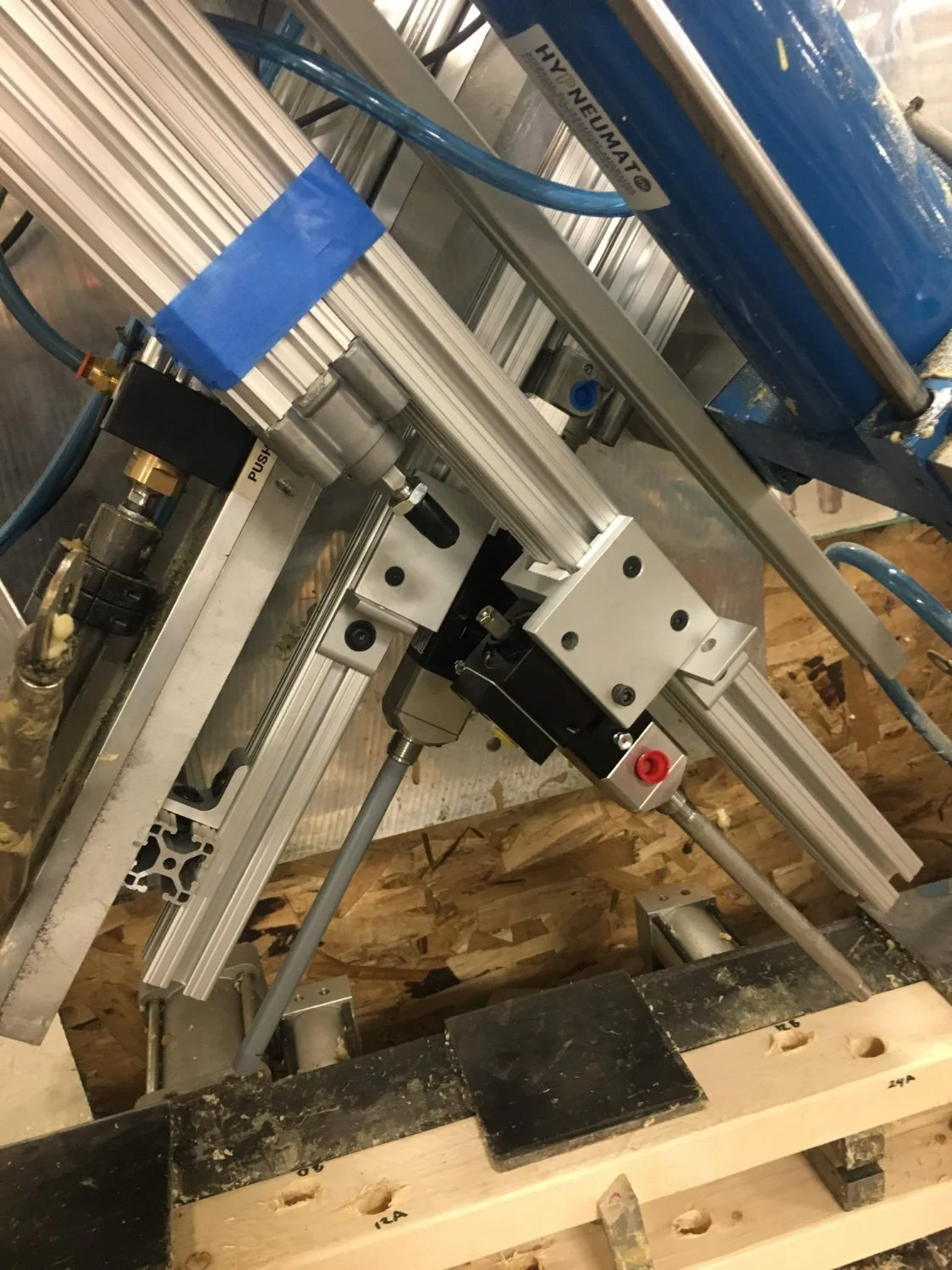

Glue dosing, nozzle geometry and pressure testing
03 / Impact & Results
- Successfully scaled production throughput while producing studs for over 100 homes.
- Maintained rigid structural tolerances and structural code compliance required for thermal envelope framing.
- Established standardized automated workflows and quality control benchmarks for ongoing manufacturing scale-up, gantry still in production today.
